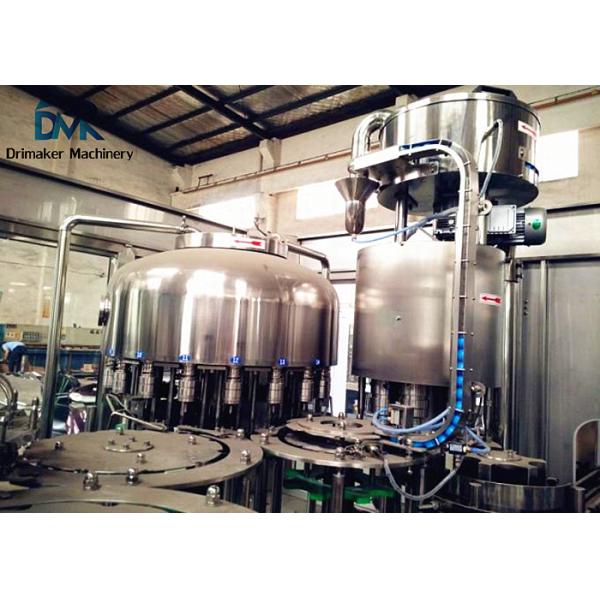

Bottle Packaging Juice Bottling Machine / Customized Juice Filling Machine

Juice bottling machine description:

1. This machine is combined with washer, filler and capper 3 seperate systems in one machine, it is an idea equipment for all kinds of fruit juice drinks, energy drinks and tea drinks.

2. If customer wants to use this machine for pure water, mineral water filling production, it only need to adjust some parts of machine.

3. Advanced filling technology and rich exparience manufacturing, this machine can fill more quickly, stable, accurate, equipped with a perfect reflux system.

4. It has CIP cleaning function, which can clean beverage tank, pipeline and filling valve and all other parts contacting beverage.

5. Using international brand touch screen control, PLC computer control, inverter control technology to make machine operation more easy.

Juice bottling machine parameters:

Juice Bottling machine features:

1.The machine is equipped with overload protection device, which can effectively protect the machine equipment and operator.

2. It adopts automatic cap loading system, with perfect cap feeding technology and protection device.

3. The control system is equipped with automatic control of liquid level in filling tank.

4. The main machine is controlled by frequency converter, which can adjust the speed of production capacity conveniently.

5. Microelectronic data control, stable performance, easy to operate, more user-friendly.

6. Cylinder for filling power, high productivity, simple structure, easy to maintain.

Juice bottling machine details:

Bottle inlet:

The air feeding device is adopted to feed the bottle, and the bottle diameter method is used to hang the bottle. The bottle loading speed is fast and the bottle will not deform

Bottle rinsing:

It adopts advanced bottle neck griping technology to avoid contact with the screw mouth of the bottle, more sanitary.

The delivery of the bottle in the machine all adopts the card bottle neck griping technology, so if customee wants to change different bottle shapes with the same bottle mouth, there is no need to adjust the height of the equipment, just replace the corresponding protective plate according to the diameter of the bottle body.

Cap loading system:

The cap loading system adopts rotary type cap arraning system with a speed of up to 20,000 pcs per hour. The cap is stored in the cap

hopper, and the motor drives the internal rotation, so that the ccap is arranged in an orderly manner and sent to the outlet of the cap.

Electric cabinet:

The whole machine operating electric control cabinet is inside the machine. All single equipment can run and stop in the control cabinet, all electric parts like PLC, frequency inverter, contactor...etc are located here, with stainless stell box to protect it, very safe and portable.
